HTML5 Atari 2600 Inspired Fireworks Demo
HTML5 Atari 2600 Inspired Fireworks Demo

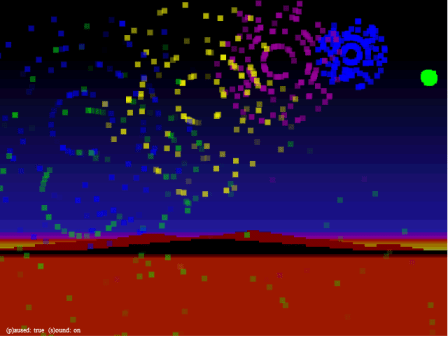

For the 4th of July,  here is an Atari 2600 inspired fireworks demo in HTML5.   Click the mouse  button to explode a firework shell.   This demo was originally designed to test our particle FX engine for the HTML Canvas with an object pool.

While I don’t have enough time this morning to go through all the code, here is a quick run-down on what is going on.

In JavaScript we create an instance of  our custom ParticleExplosionManager class : (requires the canvas context as it’s parameter).

var particleManager = new ParticleExplosionManager(context);

Then we listen listen for a “mousedown” event,

theCanvas.addEventListener("mouseup",onMouseUp, false);

and then creates three particle explosions inside of one another to get a full bursting firework effect.

 var rndColor = Math.floor(Math.random()*blockHTMLColors.length);
 var rndParts = Math.floor(Math.random()*30) + 40;
 particleManager.createExplosion(mouseX,mouseY,blockHTMLColors[rndColor], rndParts,8,8,6,.5,40);
 particleManager.createExplosion(mouseX,mouseY,blockHTMLColors[rndColor], rndParts,8,8,4,.5,40);
 particleManager.createExplosion(mouseX,mouseY,blockHTMLColors[rndColor], rndParts/2,8,8,2,.5,40);

Each explosion is a series of individual particles.  To make them move, we call the PartcleExplosionManager’s draw() function inside the draw function of our main Canvas JavaScript app.

function  draw () {



The main piece of code used for this is our JavaScript ParticleExplosionManager class.

When an explosion is created, each particle is created individually and stored as dynamic object.

this.createExplosion = function(x,y,color,number,width, height, spd, grav, lif) {
		for (var i =0;i < number;i++) {
                     var angle = Math.floor(Math.random()*360);
                     var speed = Math.floor(Math.random()*spd/2) + spd;
                     var life = Math.floor(Math.random()*lif)+lif/2;
                     var radians = angle * Math.PI/ 180;
                     var xunits = Math.cos(radians) * speed;
                     var yunits = Math.sin(radians) * speed;
                     if (particlePool.length > 0) {
				var tempParticle = particlePool.pop();
				tempParticle.x = x;
				tempParticle.y = y;
				tempParticle.xunits = xunits;
				tempParticle.yunits = yunits; = life;
				tempParticle.color = color;
				tempParticle.width = width;
				tempParticle.height = height;
				tempParticle.gravity = grav;
				tempParticle.moves = 0;
				tempParticle.alpha = 1;
				tempParticle.maxLife = life;
			} else {
				particles.push({x:x,y:y,xunits:xunits,yunits:yunits,life:life,color:color,width:width,height:height,gravity:grav,moves:0,alpha:1, maxLife:life});


When the explosion is drawn, if there is a particle in the pool, it will use that object instead of making a new one.  Particles at the end of their life are placed into the pool.  We’ve set a maximum pool size at 100, so if the pool is filled, we just splice the particle out and hope for the best.

this.draw = function() {
   for (var i=particles.length-1; i>= 0;i--) {
      particles[i].x += particles[i].xunits;
      particles[i].y += particles[i].yunits + (particles[i].gravity * particles[i].moves);

      if (particles[i].life <= 0 ) {
         if (particlePool.length < MAX_POOL_SIZE) {
         } else {
      } else {
         context.globalAlpha = (particles[i].life)/(particles[i].maxLife);
         context.fillStyle = particles[i].color;
         context.fillRect(particles[i].x,particles[i].y,particles[i].width , particles[i].height);
         context.globalAlpha = 1;


You can test it out here (click the mouse on the Canvas to create the explosions)
